metal_mix.h File Reference

Metal-friendly mixer subset (linear + crossfade) with split fallback. More...

#include "mixer.h"
#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>

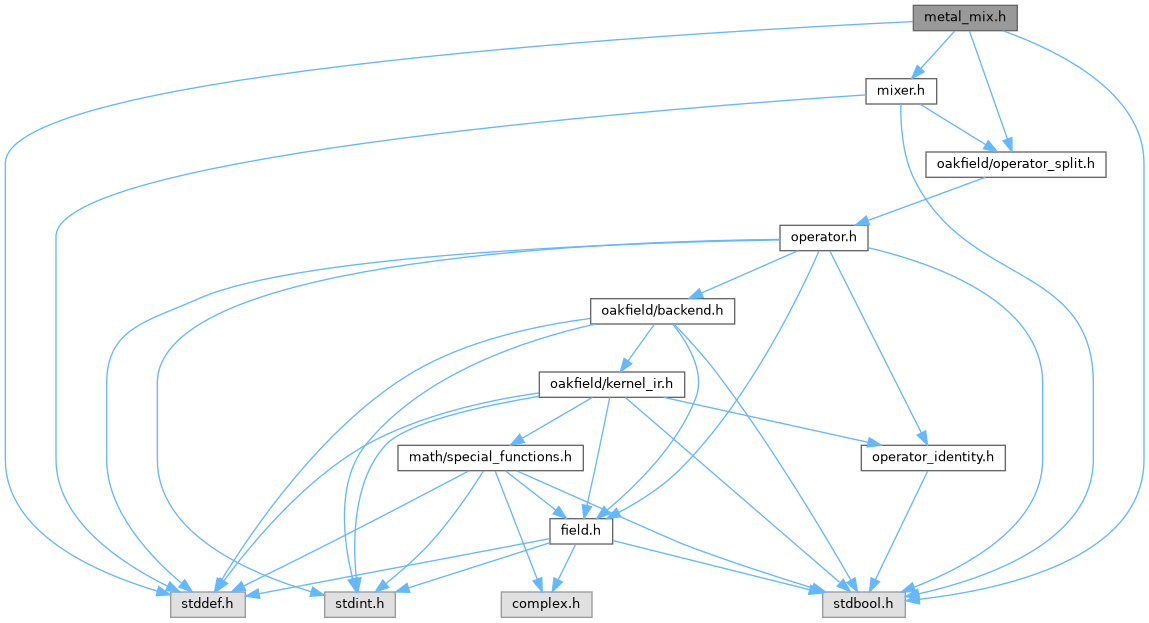

Include dependency graph for metal_mix.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimMetalMixOperatorConfig
	Configuration for the metal_mix operator. More...

Typedefs
typedef struct SimMetalMixOperatorConfig	SimMetalMixOperatorConfig
	Configuration for the metal_mix operator.

Functions
const char *	metal_mix_mode_name (SimMixerMode mode)
	Return the schema name for a metal-mix mode.
bool	metal_mix_mode_from_name (const char *name, SimMixerMode *out_mode)
	Parse a metal-mix mode name.
SimResult	sim_add_metal_mix_operator (struct SimContext *context, const SimMetalMixOperatorConfig *config, size_t *out_index)
	Register a metal-friendly mixer subset operator.
SimResult	sim_metal_mix_config (struct SimContext *context, size_t operator_index, SimMetalMixOperatorConfig *out_config)
	Copy the current metal-mix configuration from a registered operator.
SimResult	sim_metal_mix_update (struct SimContext *context, size_t operator_index, const SimMetalMixOperatorConfig *config)
	Replace or renormalize a registered metal-mix configuration.

Detailed Description

Metal-friendly mixer subset (linear + crossfade) with split fallback.

Typedef Documentation

SimMetalMixOperatorConfig

typedef struct SimMetalMixOperatorConfig SimMetalMixOperatorConfig

Configuration for the metal_mix operator.

Supports only SIM_MIXER_MODE_LINEAR and SIM_MIXER_MODE_CROSSFADE.

Function Documentation

metal_mix_mode_from_name()

bool metal_mix_mode_from_name	(	const char *	name,
		SimMixerMode *	out_mode
	)

Parse a metal-mix mode name.

Only SIM_MIXER_MODE_LINEAR and SIM_MIXER_MODE_CROSSFADE are accepted.

Parameters

	name	Schema mode name.
[out]	out_mode	Receives the parsed mode on success.

Returns

true when name maps to a supported metal-mix mode.

metal_mix_mode_name()

const char * metal_mix_mode_name

(

SimMixerMode

mode

)

Return the schema name for a metal-mix mode.

Parameters

mode	Mixer mode value.

Returns

Stable lowercase mode name.

sim_add_metal_mix_operator()

SimResult sim_add_metal_mix_operator	(	struct SimContext *	context,
		const SimMetalMixOperatorConfig *	config,
		size_t *	out_index
	)

Register a metal-friendly mixer subset operator.

Parameters

	context	Simulation context that will own the operator.
	config	Optional metal-mix configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, mode validation, field compatibility checks, allocation, or registration.

sim_metal_mix_config()

SimResult sim_metal_mix_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimMetalMixOperatorConfig *	out_config
	)

Copy the current metal-mix configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_metal_mix_operator().
[out]	out_config	Receives the normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no metal-mix state.

sim_metal_mix_update()

SimResult sim_metal_mix_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimMetalMixOperatorConfig *	config
	)

Replace or renormalize a registered metal-mix configuration.

Passing NULL for config keeps the current configuration and reapplies normalization. A successful update refreshes symbolic state and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the metal-mix operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code from lookup, mode validation, field compatibility checks, or state validation.
