Core-owned operator identity metadata shared by execution and IR. More...

#include <stdbool.h>

Include dependency graph for operator_identity.h:

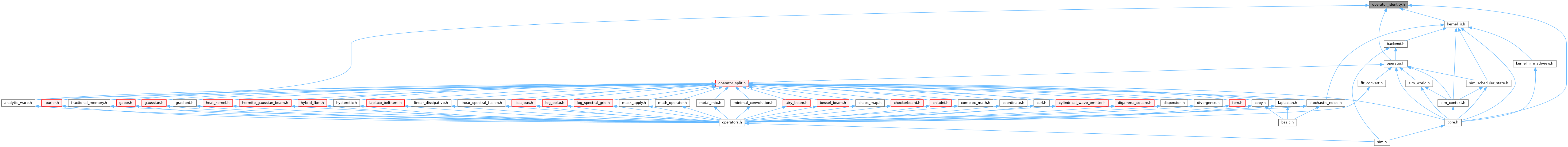

This graph shows which files directly or indirectly include this file:

Typedefs
typedef enum SimWarpLevel	SimWarpLevel
	Public classification for analytic warp operators.

typedef enum SimIROpcode	SimIROpcode
	Semantic operator category opcodes for KernelIR nodes.

Enumerations
enum	SimWarpLevel { SIM_WARP_LEVEL_NONE = 0 , SIM_WARP_LEVEL_LEVEL0 , SIM_WARP_LEVEL_LEVEL1 , SIM_WARP_LEVEL_LEVEL2 }
	Public classification for analytic warp operators. More...

enum	SimIROpcode { OAK_OP_DIFF = 0 , OAK_OP_CONV , OAK_OP_DISP , OAK_OP_DIFFUSE , OAK_OP_WARP , OAK_OP_NOISE , OAK_OP_FLOW , OAK_OP_MISC , OAK_OP_CORE }
	Semantic operator category opcodes for KernelIR nodes. More...

Functions
const char *	sim_ir_opcode_name (SimIROpcode opcode)
	Return the canonical lowercase name for a semantic opcode.

bool	sim_ir_opcode_from_string (const char text, SimIROpcode out_opcode)
	Parse a semantic opcode name into its enum value.

Detailed Description

Core-owned operator identity metadata shared by execution and IR.

Enumeration Type Documentation

Semantic operator category opcodes for KernelIR nodes.

Enumerator
OAK_OP_DIFF	Differential operator category.
OAK_OP_CONV	Convolution operator category.
OAK_OP_DISP	Dispersion operator category.
OAK_OP_DIFFUSE	Diffusion/dissipation operator category.
OAK_OP_WARP	Analytic warp operator category.
OAK_OP_NOISE	Stochastic/noise operator category.
OAK_OP_FLOW	Flow/advection operator category.
OAK_OP_MISC	Miscellaneous operator category.
OAK_OP_CORE	Core/runtime operator category.

Public classification for analytic warp operators.

Enumerator
SIM_WARP_LEVEL_NONE	Not a warp or not classified.
SIM_WARP_LEVEL_LEVEL0	Pure geometric/diffeomorphic warp.
SIM_WARP_LEVEL_LEVEL1	Analytic monotonic warp.
SIM_WARP_LEVEL_LEVEL2	Potentially non-monotonic or singular warp.

bool sim_ir_opcode_from_string	(	const char *	text,
		SimIROpcode *	out_opcode
	)

Parse a semantic opcode name into its enum value.

The parser accepts canonical names such as "diffuse" and optional "oak_op_" prefixes.
