KernelIR Struct Reference

KernelIR package describing the executable graph for a backend. More...

#include <backend.h>

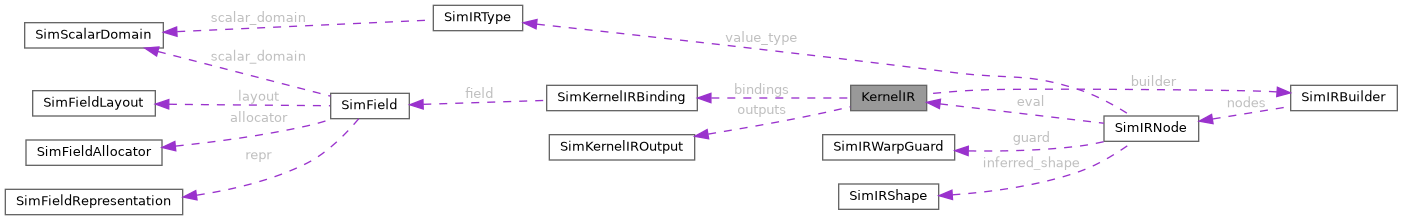

Collaboration diagram for KernelIR:

Public Attributes
const SimIRBuilder *	builder
const SimKernelIRBinding *	bindings
size_t	binding_count
const SimKernelIROutput *	outputs
size_t	output_count
double *	params
size_t	param_count
uint64_t	required_features
SimKernelComplexSemantics	complex_semantics

Detailed Description

KernelIR package describing the executable graph for a backend.

The package is caller-owned for the duration of backend_launch(). Backends may cache compiled artifacts keyed by the builder and emitted source, but they do not take ownership of fields, bindings, outputs, params, or builder storage.

Member Data Documentation

binding_count

size_t KernelIR::binding_count

Number of entries in bindings.

bindings

const SimKernelIRBinding* KernelIR::bindings

Field bindings referenced by the IR.

builder

const SimIRBuilder* KernelIR::builder

Underlying IR builder storage.

complex_semantics

SimKernelComplexSemantics KernelIR::complex_semantics

Complex-lane interpretation contract.

output_count

size_t KernelIR::output_count

Number of kernel outputs.

outputs

const SimKernelIROutput* KernelIR::outputs

Output field mapping for the kernel.

param_count

size_t KernelIR::param_count

Number of entries in params.

params

double* KernelIR::params

Optional runtime parameter array.

required_features

uint64_t KernelIR::required_features

Feature mask required by the kernel.

---

The documentation for this struct was generated from the following file:

• backend.h
