Intermediate representation facilities for libsimcore operator fusion. More...

#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include "field.h"
#include "math/special_functions.h"
#include "operator_identity.h"

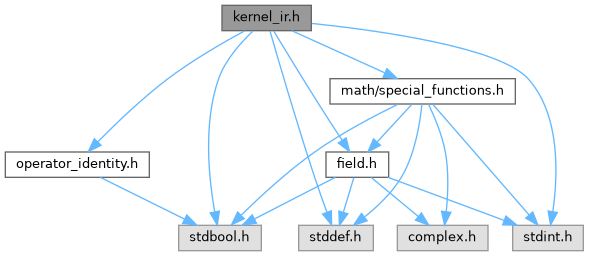

Include dependency graph for kernel_ir.h:

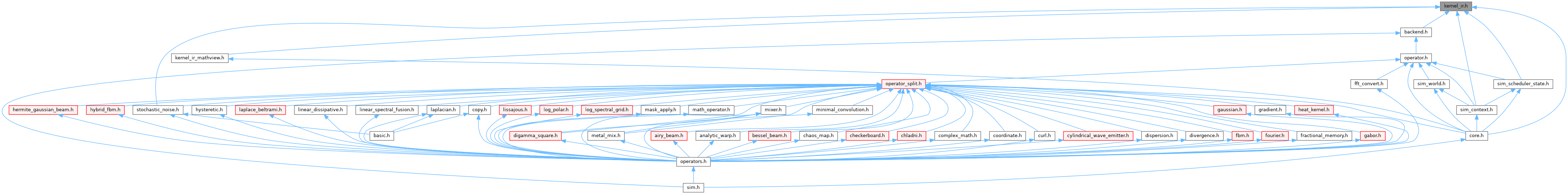

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimIRType
	Type descriptor carried by each IR node. More...

union	SimIRDomainPayload
	Exact scalar payload used by scalar-domain-aware evaluators. More...

struct	SimIRDomainValue
	Scalar-domain-aware evaluation result. More...

struct	SimIRShape
	Maximum rank supported by shape descriptors. More...

struct	SimIRDiffSpec
	Optional metadata for creating differential nodes. More...

struct	SimIRWarpGuard
	Continuity guard metadata attached to warp specifications. More...

struct	SimIRWarpSpec
	Metadata for creating analytic warp nodes. More...

struct	SimIRNoiseSpec
	Optional metadata for creating stochastic noise nodes. More...

struct	SimIRNode
	Node record in a symbolic kernel IR expression graph. More...

struct	SimIRStatefulSpec
	Metadata for creating stateful IR nodes. More...

struct	SimIRBuilder
	Monotonic arena for IR node allocation. More...

struct	SimIREvaluatorComplex
	Callback surface for evaluating complex-valued IR expressions. More...

struct	SimIREvaluator
	Callback surface for evaluating real-valued IR expressions. More...

struct	SimIREvaluatorDomain
	Callback surface for evaluating scalar-domain-aware IR expressions. More...

Macros
#define	SIM_IR_INVALID_NODE ((SimIRNodeId)SIZE_MAX)

#define	SIM_IR_INVALID_CONSTANT_INDEX ((size_t)SIZE_MAX)

#define	SIM_IR_SMALL_CONSTANT_CAPACITY 4U
	Generic IR node representation.

Typedefs
typedef size_t	SimIRNodeId

typedef enum SimIRValueKind	SimIRValueKind
	Enumerates the value category for an IR expression.

typedef struct SimIRType	SimIRType
	Type descriptor carried by each IR node.

typedef union SimIRDomainPayload	SimIRDomainPayload
	Exact scalar payload used by scalar-domain-aware evaluators.

typedef struct SimIRDomainValue	SimIRDomainValue
	Scalar-domain-aware evaluation result.

typedef struct SimIRShape	SimIRShape
	Maximum rank supported by shape descriptors.

typedef enum SimIRBoundaryPolicy	SimIRBoundaryPolicy
	Boundary handling policy for differential operators.

typedef enum SimIRDiffMethod	SimIRDiffMethod
	Finite-difference stencil selection for differential operators.

typedef enum SimIRNoiseLaw	SimIRNoiseLaw
	Noise law describing the stochastic calculus interpretation.

typedef enum SimIRNoiseDistribution	SimIRNoiseDistribution
	Probability distribution used when sampling stochastic nodes.

typedef enum SimIRParamKind	SimIRParamKind
	Runtime parameter identifiers referenced by PARAM nodes.

typedef struct SimIRDiffSpec	SimIRDiffSpec
	Optional metadata for creating differential nodes.

typedef enum SimIRWarpProfile	SimIRWarpProfile
	Supported analytic warp profiles for dedicated IR nodes.

typedef enum SimIRCallKind	SimIRCallKind
	Built-in call identifiers for unary analytic functions.

typedef struct SimIRWarpGuard	SimIRWarpGuard
	Continuity guard metadata attached to warp specifications.

typedef struct SimIRWarpSpec	SimIRWarpSpec
	Metadata for creating analytic warp nodes.

typedef struct SimIRNoiseSpec	SimIRNoiseSpec
	Optional metadata for creating stochastic noise nodes.

typedef enum SimIRNodeType	SimIRNodeType
	Enumerates IR node categories.

typedef SimResult(*	SimIRStatefulEvalFn) (void userdata, const struct KernelIR kernel, size_t element_index, size_t component, double *out_value)
	Callback signature for stateful IR nodes.

typedef struct SimIRNode	SimIRNode
	Node record in a symbolic kernel IR expression graph.

typedef struct SimIRStatefulSpec	SimIRStatefulSpec
	Metadata for creating stateful IR nodes.

typedef struct SimIRBuilder	SimIRBuilder
	Monotonic arena for IR node allocation.

typedef SimResult(*	SimIRFieldEvalFn) (void userdata, size_t field_id, SimIRType type, double out_value)
	Resolve a real-valued field reference during IR evaluation.

typedef SimResult(*	SimIRDiffEvalFn) (void userdata, const SimIRBuilder builder, const SimIRNode node, SimIRNodeId operand, double operand_value, double out_value)
	Evaluate a real-valued differential node during IR evaluation.

typedef SimResult(*	SimIRNoiseEvalFn) (void userdata, const SimIRNode node, double *out_value)
	Sample a real-valued stochastic node during IR evaluation.

typedef SimResult(*	SimIRParamEvalFn) (void userdata, SimIRParamKind param, double out_value)
	Resolve a real-valued runtime parameter during IR evaluation.

typedef SimResult(*	SimIRFieldEvalFnComplex) (void userdata, size_t field_id, SimIRType type, SimComplexDouble out_value)
	Resolve a complex-valued field reference during IR evaluation.

typedef SimResult(*	SimIRDiffEvalFnComplex) (void userdata, const SimIRBuilder builder, const SimIRNode node, SimIRNodeId operand, SimComplexDouble operand_value, SimComplexDouble out_value)
	Evaluate a complex-valued differential node during IR evaluation.

typedef SimResult(*	SimIRNoiseEvalFnComplex) (void userdata, const SimIRNode node, SimComplexDouble *out_value)
	Sample a complex-valued stochastic node during IR evaluation.

typedef struct SimIREvaluatorComplex	SimIREvaluatorComplex
	Callback surface for evaluating complex-valued IR expressions.

typedef struct SimIREvaluator	SimIREvaluator
	Callback surface for evaluating real-valued IR expressions.

typedef SimResult(*	SimIRFieldEvalFnDomain) (void userdata, size_t field_id, SimIRType type, SimScalarDomain domain, SimIRDomainValue out_value)
	Resolve a scalar-domain-aware field reference during IR evaluation.

typedef SimResult(*	SimIRDiffEvalFnDomain) (void userdata, const SimIRBuilder builder, const SimIRNode node, SimIRNodeId operand, SimScalarDomain domain, SimIRDomainValue operand_value, SimIRDomainValue out_value)
	Evaluate a scalar-domain-aware differential node during IR evaluation.

typedef SimResult(*	SimIRNoiseEvalFnDomain) (void userdata, const SimIRNode node, SimScalarDomain domain, SimIRDomainValue *out_value)
	Sample a scalar-domain-aware stochastic node during IR evaluation.

typedef SimResult(*	SimIRParamEvalFnDomain) (void userdata, SimIRParamKind param, SimScalarDomain domain, SimIRDomainValue out_value)
	Resolve a scalar-domain-aware runtime parameter during IR evaluation.

typedef struct SimIREvaluatorDomain	SimIREvaluatorDomain
	Callback surface for evaluating scalar-domain-aware IR expressions.

Enumerations
enum	SimIRValueKind { SIM_IR_VALUE_SCALAR = 0 , SIM_IR_VALUE_VECTOR }
	Enumerates the value category for an IR expression. More...

enum	SimIRBoundaryPolicy { SIM_IR_BOUNDARY_NEUMANN = 0 , SIM_IR_BOUNDARY_DIRICHLET , SIM_IR_BOUNDARY_PERIODIC , SIM_IR_BOUNDARY_REFLECTIVE }
	Boundary handling policy for differential operators. More...

enum	SimIRDiffMethod { SIM_IR_DIFF_METHOD_AUTO = 0 , SIM_IR_DIFF_METHOD_CENTRAL , SIM_IR_DIFF_METHOD_FORWARD , SIM_IR_DIFF_METHOD_BACKWARD }
	Finite-difference stencil selection for differential operators. More...

enum	SimIRNoiseLaw { SIM_IR_NOISE_LAW_ITO = 0 , SIM_IR_NOISE_LAW_STRATONOVICH }
	Noise law describing the stochastic calculus interpretation. More...

enum	SimIRNoiseDistribution { SIM_IR_NOISE_DISTRIBUTION_UNIFORM = 0 , SIM_IR_NOISE_DISTRIBUTION_GAUSSIAN }
	Probability distribution used when sampling stochastic nodes. More...

enum	SimIRParamKind { SIM_IR_PARAM_DT = 0 , SIM_IR_PARAM_STEP_INDEX , SIM_IR_PARAM_SQRT_DT , SIM_IR_PARAM_TIME }
	Runtime parameter identifiers referenced by PARAM nodes. More...

enum	SimIRWarpProfile { SIM_IR_WARP_PROFILE_DIGAMMA = 0 , SIM_IR_WARP_PROFILE_TRIGAMMA = 1 , SIM_IR_WARP_PROFILE_DIGAMMA_7_TAIL = 2 , SIM_IR_WARP_PROFILE_DIGAMMA_5_TAIL = 3 , SIM_IR_WARP_PROFILE_DIGAMMA_ADAPTIVE = 4 , SIM_IR_WARP_PROFILE_DIGAMMA_MORTICI = 5 }
	Supported analytic warp profiles for dedicated IR nodes. More...

enum	SimIRCallKind { SIM_IR_CALL_SIN = 0 , SIM_IR_CALL_COS , SIM_IR_CALL_EXP , SIM_IR_CALL_ABS , SIM_IR_CALL_LOG , SIM_IR_CALL_TANH , SIM_IR_CALL_SINH , SIM_IR_CALL_SIGN }
	Built-in call identifiers for unary analytic functions. More...

enum	SimIRNodeType { SIM_IR_NODE_CONSTANT = 0 , SIM_IR_NODE_FIELD_REF , SIM_IR_NODE_ADD , SIM_IR_NODE_SUB , SIM_IR_NODE_MUL , SIM_IR_NODE_DIV , SIM_IR_NODE_POW , SIM_IR_NODE_DIFF , SIM_IR_NODE_NOISE , SIM_IR_NODE_WARP , SIM_IR_NODE_PARAM , SIM_IR_NODE_COMPLEX_PACK , SIM_IR_NODE_COMPLEX_ROTATE , SIM_IR_NODE_INDEX , SIM_IR_NODE_CALL , SIM_IR_NODE_FLOOR , SIM_IR_NODE_MOD , SIM_IR_NODE_COORD , SIM_IR_NODE_STATEFUL }
	Enumerates IR node categories. More...

Functions
SimResult	sim_ir_warp_sample_response (const struct SimWarpSampleSpec spec, SimIRWarpProfile profile, double tolerance, SimSpecialFallbackFn fallback, void fallback_userdata, double *out_response)

SimResult	sim_ir_builder_init (SimIRBuilder *builder)
	Initialize an empty IR builder.

void	sim_ir_builder_set_default_boundary (SimIRBuilder *builder, SimIRBoundaryPolicy boundary)
	Set the default boundary policy used by shorthand differential helpers.

void	sim_ir_builder_reset (SimIRBuilder *builder)
	Reset builder counts while retaining allocated storage.

void	sim_ir_builder_apply_opcode (SimIRBuilder *builder, SimIROpcode opcode, bool preserve_existing)
	Apply a semantic opcode to nodes stored in a builder.

SimResult	sim_ir_builder_apply_opcode_reachable (SimIRBuilder builder, SimIROpcode opcode, bool preserve_existing, const SimIRNodeId roots, size_t root_count)
	Apply a semantic opcode to reachable nodes starting from the provided roots.

SimResult	sim_ir_collect_reachable (const SimIRBuilder builder, const SimIRNodeId roots, size_t root_count, unsigned char *out_reachable, size_t reachable_count)
	Mark nodes reachable from a set of roots.

void	sim_ir_diff_spec_init (SimIRDiffSpec spec, const SimIRBuilder builder)
	Initialize a diff spec with safe defaults.

void	sim_ir_builder_destroy (SimIRBuilder *builder)
	Release resources held by an IR builder.

const SimIRNode *	sim_ir_builder_get (const SimIRBuilder *builder, SimIRNodeId id)
	Retrieve an immutable pointer to a node.

SimIRType	sim_ir_builder_node_type (const SimIRBuilder *builder, SimIRNodeId id)
	Query the value type of a node.

SimWarpLevel	sim_ir_builder_node_warp_class (const SimIRBuilder *builder, SimIRNodeId id)
	Retrieve the warp classification associated with a node.

SimResult	sim_ir_builder_set_node_warp_class (SimIRBuilder *builder, SimIRNodeId id, SimWarpLevel warp_class)
	Assign a warp classification to a node for downstream code generation.

SimIRNodeId	sim_ir_builder_constant_typed (SimIRBuilder *builder, double value, SimIRType type)
	Create a constant node with explicit type annotation.

SimIRNodeId	sim_ir_builder_constant_i64_typed (SimIRBuilder *builder, int64_t value, SimIRType type)
	Create an exact signed integer constant node with explicit type annotation.

SimIRNodeId	sim_ir_builder_constant_u64_typed (SimIRBuilder *builder, uint64_t value, SimIRType type)
	Create an exact unsigned integer constant node with explicit type annotation.

SimIRNodeId	sim_ir_builder_constant_vector_typed (SimIRBuilder builder, const double values, size_t components, SimIRType type)
	Create a vector constant node with explicit type annotation.

SimIRNodeId	sim_ir_builder_constant_complex (SimIRBuilder *builder, double real, double imag)
	Create a complex constant node from real/imag components.

SimIRNodeId	sim_ir_builder_constant_vector (SimIRBuilder builder, const double values, size_t components)
	Add a per-lane constant vector to the builder and return a node id.

bool	sim_ir_kernel_has_unsupported_complex_semantics (const struct KernelIR *kernel)
	Query whether a kernel contains true complex-domain nodes whose semantics are not representable by the simple pointwise GPU emitters.

SimIRNodeId	sim_ir_builder_constant (SimIRBuilder *builder, double value)
	Create a constant node.

SimIRNodeId	sim_ir_builder_param (SimIRBuilder *builder, SimIRParamKind param)
	Create a runtime parameter node.

SimIRNodeId	sim_ir_builder_index (SimIRBuilder *builder)
	Create a linear element-index node.

SimIRNodeId	sim_ir_builder_call (SimIRBuilder *builder, SimIRCallKind kind, SimIRNodeId operand)
	Create a unary analytic call node (elementwise for vector values).

SimIRNodeId	sim_ir_builder_floor (SimIRBuilder *builder, SimIRNodeId operand)
	Create a floor node.

SimIRNodeId	sim_ir_builder_mod (SimIRBuilder *builder, SimIRNodeId lhs, SimIRNodeId rhs)
	Create a modulo node.

SimIRNodeId	sim_ir_builder_coord (SimIRBuilder *builder, size_t field_id, size_t axis)
	Create a coordinate lookup node.

SimIRNodeId	sim_ir_builder_field_ref_typed (SimIRBuilder *builder, size_t field_id, SimIRType type)
	Create a field reference node with an explicit value type.

SimIRNodeId	sim_ir_builder_field_ref (SimIRBuilder *builder, size_t field_id)
	Create a field reference node.

SimIRNodeId	sim_ir_builder_binary (SimIRBuilder *builder, SimIRNodeType type, SimIRNodeId lhs, SimIRNodeId rhs)
	Create a binary operation node.

SimIRNodeId	sim_ir_builder_pow (SimIRBuilder *builder, SimIRNodeId lhs, SimIRNodeId rhs)
	Create a power node (pow for real, cpow for complex).

SimIRNodeId	sim_ir_builder_diff_spec (SimIRBuilder builder, const SimIRDiffSpec spec)
	Create a differential term node using an extended specification.

SimIRNodeId	sim_ir_builder_diff (SimIRBuilder *builder, SimIRNodeId operand, size_t axis, double dx, double scale)
	Create a differential term node.

SimIRNodeId	sim_ir_builder_noise_spec (SimIRBuilder builder, const SimIRNoiseSpec spec)
	Create a stochastic noise node with extended metadata.

SimIRNodeId	sim_ir_builder_stateful_spec (SimIRBuilder builder, const SimIRStatefulSpec spec)
	Create a stateful callback node with extended metadata.

SimIRNodeId	sim_ir_builder_stateful (SimIRBuilder builder, SimIRStatefulEvalFn eval, void userdata, const char *label)
	Create a stateful callback node with a scalar result type.

SimIRNodeId	sim_ir_builder_noise (SimIRBuilder *builder, uint32_t seed, double amplitude)
	Create a stochastic noise node.

SimIRNodeId	sim_ir_builder_warp_spec (SimIRBuilder builder, const SimIRWarpSpec spec)
	Create an analytic warp node using the extended specification.

SimIRNodeId	sim_ir_builder_warp (SimIRBuilder *builder, SimIRNodeId operand, SimIRWarpProfile profile, double bias, double delta, double lambda)
	Create an analytic warp node with explicit parameters.

SimIRNodeId	sim_ir_builder_complex_pack (SimIRBuilder *builder, SimIRNodeId real, SimIRNodeId imag)
	Pack real/imag scalar nodes into a complex-valued vector.

SimIRNodeId	sim_ir_builder_complex_rotate (SimIRBuilder *builder, SimIRNodeId operand, SimIRNodeId angle)
	Create a complex rotation node using a scalar angle.

SimIRType	sim_ir_type_scalar (void)
	Construct a scalar value type descriptor.

SimIRType	sim_ir_type_scalar_domain_typed (SimScalarDomain domain)
	Construct a scalar value type descriptor for an explicit scalar domain.

SimIRType	sim_ir_type_vector (size_t components)
	Construct a vector value type descriptor with the requested lane count.

SimIRType	sim_ir_type_complex (void)
	Construct a complex scalar value type descriptor (2 lanes).

bool	sim_ir_type_is_scalar (SimIRType type)
	Return true if the provided type describes a scalar expression.

bool	sim_ir_type_equal (SimIRType lhs, SimIRType rhs)
	Compare two type descriptors for equality.

SimScalarDomain	sim_ir_type_scalar_domain (SimIRType type)
	Return the scalar-domain descriptor attached to an IR type.

double	sim_ir_warp_profile_eval (SimIRWarpProfile profile, double x, double tolerance)
	Evaluate a warp profile at the provided sample.

double	sim_ir_warp_difference (SimIRWarpProfile profile, double sample, double delta, double tolerance)
	Compute the symmetric warp difference f(x+δ) − f(x−δ).

SimResult	sim_ir_evaluate_domain (const SimIRBuilder builder, SimIRNodeId root, const SimIREvaluatorDomain evaluator, SimIRDomainValue *out_value)
	Evaluate an IR expression using a unified scalar-domain evaluator surface.

SimResult	sim_ir_evaluate (const SimIRBuilder builder, SimIRNodeId root, const SimIREvaluator evaluator, double *out_value)
	Evaluate an IR expression recursively using user-provided callbacks.

SimResult	sim_ir_evaluate_complex (const SimIRBuilder builder, SimIRNodeId root, const SimIREvaluatorComplex evaluator, SimComplexDouble *out_value)
	Evaluate an IR expression recursively using complex-valued callbacks.

Detailed Description

Intermediate representation facilities for libsimcore operator fusion.

KernelIR is a typed expression graph used by operators and backends to describe pointwise numeric work independently of a concrete execution engine. Builders own node and constant-pool storage; backend launch packages borrow builders, field bindings, outputs, and runtime parameters only for the duration of a launch.

Macro Definition Documentation

◆ SIM_IR_INVALID_NODE

#define SIM_IR_INVALID_NODE ((SimIRNodeId)SIZE_MAX)

Sentinel value returned when node creation fails.

Typedef Documentation

◆ SimIRNodeId

typedef size_t SimIRNodeId

Identifier for an IR node.

Enumeration Type Documentation

◆ SimIRBoundaryPolicy

enum SimIRBoundaryPolicy

Boundary handling policy for differential operators.

Enumerator
SIM_IR_BOUNDARY_NEUMANN	Zero-gradient boundary (mirrors center value).
SIM_IR_BOUNDARY_DIRICHLET	Fixed-value boundary (assumed zero when unspecified).
SIM_IR_BOUNDARY_PERIODIC	Wrap indices across the domain.
SIM_IR_BOUNDARY_REFLECTIVE	Reflect indices to remain in bounds.

◆ SimIRCallKind

enum SimIRCallKind

Built-in call identifiers for unary analytic functions.

Enumerator
SIM_IR_CALL_SIN	Sine function.
SIM_IR_CALL_COS	Cosine function.
SIM_IR_CALL_EXP	Exponential function.
SIM_IR_CALL_ABS	Absolute value.
SIM_IR_CALL_LOG	Natural logarithm.
SIM_IR_CALL_TANH	Hyperbolic tangent.
SIM_IR_CALL_SINH	Hyperbolic sine.
SIM_IR_CALL_SIGN	Sign (copysign(1, x)).

◆ SimIRDiffMethod

enum SimIRDiffMethod

Finite-difference stencil selection for differential operators.

Enumerator
SIM_IR_DIFF_METHOD_AUTO	Adaptive: central when possible, else one-sided.
SIM_IR_DIFF_METHOD_CENTRAL	Central difference (uses boundary substitution when needed).
SIM_IR_DIFF_METHOD_FORWARD	Forward difference.
SIM_IR_DIFF_METHOD_BACKWARD	Backward difference.

◆ SimIRNodeType

enum SimIRNodeType

Enumerates IR node categories.

Enumerator
SIM_IR_NODE_CONSTANT	Scalar literal.
SIM_IR_NODE_FIELD_REF	Reference to a field.
SIM_IR_NODE_ADD	Binary addition.
SIM_IR_NODE_SUB	Binary subtraction.
SIM_IR_NODE_MUL	Binary multiplication.
SIM_IR_NODE_DIV	Binary division.
SIM_IR_NODE_POW	Binary power (pow for real, cpow for complex).
SIM_IR_NODE_DIFF	Differential term (finite difference placeholder).
SIM_IR_NODE_NOISE	Stochastic noise term.
SIM_IR_NODE_WARP	Analytic warp response.
SIM_IR_NODE_PARAM	Runtime parameter lookup (e.g., dt).
SIM_IR_NODE_COMPLEX_PACK	Pack real/imag scalars into a complex vector.
SIM_IR_NODE_COMPLEX_ROTATE	Complex phase rotation by a scalar angle.
SIM_IR_NODE_INDEX	Linear element index within the field.
SIM_IR_NODE_CALL	Unary analytic call node (sin/cos/exp/abs/log).
SIM_IR_NODE_FLOOR	Floor operation on a scalar operand.
SIM_IR_NODE_MOD	Modulo operation on scalar operands.
SIM_IR_NODE_COORD	Coordinate lookup along an axis.
SIM_IR_NODE_STATEFUL	Stateful callback-driven node (CPU-only).

◆ SimIRNoiseDistribution

enum SimIRNoiseDistribution

Probability distribution used when sampling stochastic nodes.

Enumerator
SIM_IR_NOISE_DISTRIBUTION_UNIFORM	Uniform samples in [-amplitude, amplitude].
SIM_IR_NOISE_DISTRIBUTION_GAUSSIAN	Gaussian samples with stddev = amplitude.

◆ SimIRNoiseLaw

enum SimIRNoiseLaw

Noise law describing the stochastic calculus interpretation.

Enumerator
SIM_IR_NOISE_LAW_ITO	Itô interpretation (default).
SIM_IR_NOISE_LAW_STRATONOVICH	Stratonovich interpretation.

◆ SimIRParamKind

enum SimIRParamKind

Runtime parameter identifiers referenced by PARAM nodes.

Enumerator
SIM_IR_PARAM_DT	Current timestep (seconds).
SIM_IR_PARAM_STEP_INDEX	Monotonic step index (integer-valued).
SIM_IR_PARAM_SQRT_DT	Square root of timestep (seconds^0.5).
SIM_IR_PARAM_TIME	Current simulation time (seconds).

◆ SimIRValueKind

enum SimIRValueKind

Enumerates the value category for an IR expression.

Enumerator
SIM_IR_VALUE_SCALAR	Scalar-valued expression.
SIM_IR_VALUE_VECTOR	Vector-valued expression with SimIRType::components lanes.

◆ SimIRWarpProfile

enum SimIRWarpProfile

Supported analytic warp profiles for dedicated IR nodes.

Enumerator
SIM_IR_WARP_PROFILE_DIGAMMA	Digamma warp (psi, 12-tail default).
SIM_IR_WARP_PROFILE_TRIGAMMA	Trigamma warp (psi_1).
SIM_IR_WARP_PROFILE_DIGAMMA_7_TAIL	Digamma (7-term Stirling tail).
SIM_IR_WARP_PROFILE_DIGAMMA_5_TAIL	Digamma (5-term Stirling tail).
SIM_IR_WARP_PROFILE_DIGAMMA_ADAPTIVE	Digamma (adaptive-tail).
SIM_IR_WARP_PROFILE_DIGAMMA_MORTICI	Digamma (Mortici speedy).

Function Documentation

◆ sim_ir_builder_apply_opcode()

void sim_ir_builder_apply_opcode	(	SimIRBuilder *	builder,
		SimIROpcode	opcode,
		bool	preserve_existing
	)

Apply a semantic opcode to nodes stored in a builder.

Parameters

builder	Target builder.
opcode	Opcode to assign (falls back to OAK_OP_MISC when invalid).
preserve_existing	When true, only nodes tagged OAK_OP_MISC are updated.

◆ sim_ir_builder_apply_opcode_reachable()

SimResult sim_ir_builder_apply_opcode_reachable	(	SimIRBuilder *	builder,
		SimIROpcode	opcode,
		bool	preserve_existing,
		const SimIRNodeId *	roots,
		size_t	root_count
	)

Apply a semantic opcode to reachable nodes starting from the provided roots.

Parameters

builder	Target builder.
opcode	Opcode to assign (falls back to OAK_OP_MISC when invalid).
preserve_existing	When true, only nodes tagged OAK_OP_MISC are updated.
roots	Array of root node identifiers to traverse.
root_count	Number of roots in `roots`.

◆ sim_ir_builder_binary()

SimIRNodeId sim_ir_builder_binary	(	SimIRBuilder *	builder,
		SimIRNodeType	type,
		SimIRNodeId	lhs,
		SimIRNodeId	rhs
	)

Create a binary operation node.

Parameters

builder	Target builder.
type	Operation type; must be one of the binary node kinds.
lhs	Left operand.
rhs	Right operand.

Returns: Node identifier or SIM_IR_INVALID_NODE.

◆ sim_ir_builder_constant()

SimIRNodeId sim_ir_builder_constant	(	SimIRBuilder *	builder,
		double	value
	)

Create a constant node.

Parameters

builder	Target builder.
value	Literal value.

Returns: Identifier of the created node or SIM_IR_INVALID_NODE on failure.

◆ sim_ir_builder_constant_vector()

SimIRNodeId sim_ir_builder_constant_vector	(	SimIRBuilder *	builder,
		const double *	values,
		size_t	components
	)

Add a per-lane constant vector to the builder and return a node id.

Values are copied into the builder's constant pool; the returned node is a constant node with its value_type set to vector(components).

◆ sim_ir_builder_destroy()

void sim_ir_builder_destroy ( SimIRBuilder * builder )

Release resources held by an IR builder.

Parameters

builder Builder to destroy; may be NULL.

◆ sim_ir_builder_diff()

SimIRNodeId sim_ir_builder_diff	(	SimIRBuilder *	builder,
		SimIRNodeId	operand,
		size_t	axis,
		double	dx,
		double	scale
	)

Create a differential term node.

Parameters

builder	Target builder.
operand	Operand node identifier.
axis	Axis index for the derivative.
dx	Grid spacing along `axis`.
scale	Scaling factor applied to the differential.

Returns: Node identifier or SIM_IR_INVALID_NODE.

◆ sim_ir_builder_field_ref()

SimIRNodeId sim_ir_builder_field_ref	(	SimIRBuilder *	builder,
		size_t	field_id
	)

Create a field reference node.

Parameters

builder	Target builder.
field_id	Identifier of the referenced field.

Returns: New node identifier or SIM_IR_INVALID_NODE on failure.

◆ sim_ir_builder_get()

const SimIRNode * sim_ir_builder_get	(	const SimIRBuilder *	builder,
		SimIRNodeId	id
	)

Retrieve an immutable pointer to a node.

Parameters

builder	Builder instance.
id	Node identifier.

Returns: Pointer to the node or NULL if id is invalid.

◆ sim_ir_builder_init()

SimResult sim_ir_builder_init ( SimIRBuilder * builder )

Initialize an empty IR builder.

Parameters

[out] builder Builder instance to initialize.

Returns: SIM_RESULT_OK on success.

◆ sim_ir_builder_noise()

SimIRNodeId sim_ir_builder_noise	(	SimIRBuilder *	builder,
		uint32_t	seed,
		double	amplitude
	)

Create a stochastic noise node.

Parameters

builder	Target builder.
seed	Seed value for deterministic noise streams.
amplitude	Noise amplitude.

Returns: Node identifier or SIM_IR_INVALID_NODE.

◆ sim_ir_builder_reset()

void sim_ir_builder_reset ( SimIRBuilder * builder )

Reset builder counts while retaining allocated storage.

Clears nodes/constants counts but keeps capacity for reuse.

◆ sim_ir_builder_set_default_boundary()

void sim_ir_builder_set_default_boundary	(	SimIRBuilder *	builder,
		SimIRBoundaryPolicy	boundary
	)

Set the default boundary policy used by shorthand differential helpers.

Parameters

builder	Target builder.
boundary	Boundary policy; falls back to NEUMANN when invalid.

◆ sim_ir_collect_reachable()

SimResult sim_ir_collect_reachable	(	const SimIRBuilder *	builder,
		const SimIRNodeId *	roots,
		size_t	root_count,
		unsigned char *	out_reachable,
		size_t	reachable_count
	)

Mark nodes reachable from a set of roots.

Parameters

builder	Builder instance.
roots	Root node identifiers to traverse.
root_count	Number of roots in `roots`.
out_reachable	Byte array to receive reachability flags (size >= builder->count).
reachable_count	Size of `out_reachable` in bytes.

◆ sim_ir_diff_spec_init()

void sim_ir_diff_spec_init	(	SimIRDiffSpec *	spec,
		const SimIRBuilder *	builder
	)

Initialize a diff spec with safe defaults.

Sets order/stencil_order=1, scale=1, dx=1, boundary=builder default (if provided) or NEUMANN, and result_type to scalar.

◆ sim_ir_evaluate_domain()

SimResult sim_ir_evaluate_domain	(	const SimIRBuilder *	builder,
		SimIRNodeId	root,
		const SimIREvaluatorDomain *	evaluator,
		SimIRDomainValue *	out_value
	)

Evaluate an IR expression using a unified scalar-domain evaluator surface.

This API selects real vs complex execution semantics from SimIRType.scalar_domain. Existing sim_ir_evaluate* paths remain as compatibility wrappers/fast paths.

◆ sim_ir_kernel_has_unsupported_complex_semantics()

bool sim_ir_kernel_has_unsupported_complex_semantics ( const struct KernelIR * kernel )

Query whether a kernel contains true complex-domain nodes whose semantics are not representable by the simple pointwise GPU emitters.

Kernels that opt into componentwise complex-lane semantics are treated as supported.

Classes

Macros

Typedefs

Enumerations

Functions

Detailed Description

Macro Definition Documentation

◆ SIM_IR_INVALID_NODE

Typedef Documentation

◆ SimIRNodeId

Enumeration Type Documentation

◆ SimIRBoundaryPolicy

◆ SimIRCallKind

◆ SimIRDiffMethod

◆ SimIRNodeType

◆ SimIRNoiseDistribution

◆ SimIRNoiseLaw

◆ SimIRParamKind

◆ SimIRValueKind

◆ SimIRWarpProfile

Function Documentation

◆ sim_ir_builder_apply_opcode()

◆ sim_ir_builder_apply_opcode_reachable()

◆ sim_ir_builder_binary()

◆ sim_ir_builder_constant()

◆ sim_ir_builder_constant_vector()

◆ sim_ir_builder_destroy()

◆ sim_ir_builder_diff()

◆ sim_ir_builder_field_ref()

◆ sim_ir_builder_get()

◆ sim_ir_builder_init()

◆ sim_ir_builder_noise()

◆ sim_ir_builder_reset()

◆ sim_ir_builder_set_default_boundary()

◆ sim_ir_collect_reachable()

◆ sim_ir_diff_spec_init()

◆ sim_ir_evaluate_domain()

◆ sim_ir_kernel_has_unsupported_complex_semantics()
