kernel_ir_mathview.h File Reference

MathView rendering helpers for KernelIR graphs. More...

#include "kernel_ir.h"

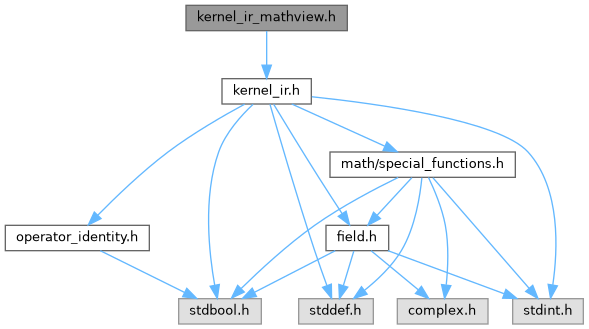

Include dependency graph for kernel_ir_mathview.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	SIM_IR_MATHVIEW_SCHEMA_VERSION   "1.0"
#define	SIM_IR_MATHVIEW_COMPLEX_SEMANTICS   "cartesian"
#define	SIM_IR_MATHVIEW_COMPLEX_BRANCH   "principal"

Functions
SimResult	sim_ir_mathview_render (const SimIRBuilder *builder, SimIRNodeId root, char *buffer, size_t capacity, size_t *out_length)
	Render a KernelIR expression into a canonical MathView string.
SimResult	sim_ir_mathview_render_json (const SimIRBuilder *builder, SimIRNodeId root, char *buffer, size_t capacity, size_t *out_length)
	Render a KernelIR expression into a Math IR JSON AST.
SimResult	sim_ir_mathview_render_latex (const SimIRBuilder *builder, SimIRNodeId root, char *buffer, size_t capacity, size_t *out_length)
	Render a KernelIR expression into a LaTeX outline string.
SimResult	sim_ir_mathview_hash (const SimIRBuilder *builder, SimIRNodeId root, uint64_t *out_hash)
	Hash a KernelIR expression based on its canonical MathView string.
SimResult	sim_ir_mathview_hash_sha256 (const SimIRBuilder *builder, SimIRNodeId root, unsigned char out_hash[32])
	Hash a KernelIR expression based on its canonical MathView string.

Detailed Description

MathView rendering helpers for KernelIR graphs.

Function Documentation

sim_ir_mathview_hash()

SimResult sim_ir_mathview_hash	(	const SimIRBuilder *	builder,
		SimIRNodeId	root,
		uint64_t *	out_hash
	)

Hash a KernelIR expression based on its canonical MathView string.

Parameters

	builder	Builder containing the referenced nodes.
	root	Root node identifier.
[out]	out_hash	Receives the computed 64-bit hash.

Returns

SIM_RESULT_OK on success.

sim_ir_mathview_hash_sha256()

SimResult sim_ir_mathview_hash_sha256	(	const SimIRBuilder *	builder,
		SimIRNodeId	root,
		unsigned char	out_hash[32]
	)

Hash a KernelIR expression based on its canonical MathView string.

Uses SHA-256 over the canonical string (including header).

Parameters

	builder	Builder containing the referenced nodes.
	root	Root node identifier.
[out]	out_hash	Receives the 32-byte SHA-256 digest.

Returns

SIM_RESULT_OK on success.

sim_ir_mathview_render()

SimResult sim_ir_mathview_render	(	const SimIRBuilder *	builder,
		SimIRNodeId	root,
		char *	buffer,
		size_t	capacity,
		size_t *	out_length
	)

Render a KernelIR expression into a canonical MathView string.

The canonical string includes a schema header with complex semantics.

Parameters

	builder	Builder containing the referenced nodes.
	root	Root node identifier.
	buffer	Output buffer (may be NULL to query required length).
	capacity	Capacity of buffer in bytes.
[out]	out_length	Receives the required length (without NUL) when non-NULL.

Returns

SIM_RESULT_OK on success, SIM_RESULT_OUT_OF_MEMORY if buffer is too small.

sim_ir_mathview_render_json()

SimResult sim_ir_mathview_render_json	(	const SimIRBuilder *	builder,
		SimIRNodeId	root,
		char *	buffer,
		size_t	capacity,
		size_t *	out_length
	)

Render a KernelIR expression into a Math IR JSON AST.

Parameters

	builder	Builder containing the referenced nodes.
	root	Root node identifier.
	buffer	Output buffer (may be NULL to query required length).
	capacity	Capacity of buffer in bytes.
[out]	out_length	Receives the required length (without NUL) when non-NULL.

Returns

SIM_RESULT_OK on success, SIM_RESULT_OUT_OF_MEMORY if buffer is too small.

sim_ir_mathview_render_latex()

SimResult sim_ir_mathview_render_latex	(	const SimIRBuilder *	builder,
		SimIRNodeId	root,
		char *	buffer,
		size_t	capacity,
		size_t *	out_length
	)

Render a KernelIR expression into a LaTeX outline string.

Parameters

	builder	Builder containing the referenced nodes.
	root	Root node identifier.
	buffer	Output buffer (may be NULL to query required length).
	capacity	Capacity of buffer in bytes.
[out]	out_length	Receives the required length (without NUL) when non-NULL.

Returns

SIM_RESULT_OK on success, SIM_RESULT_OUT_OF_MEMORY if buffer is too small.
