operator.h File Reference

Operator abstraction, registry, and dependency resolution for libsimcore. More...

#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include "field.h"
#include "oakfield/backend.h"
#include "operator_identity.h"

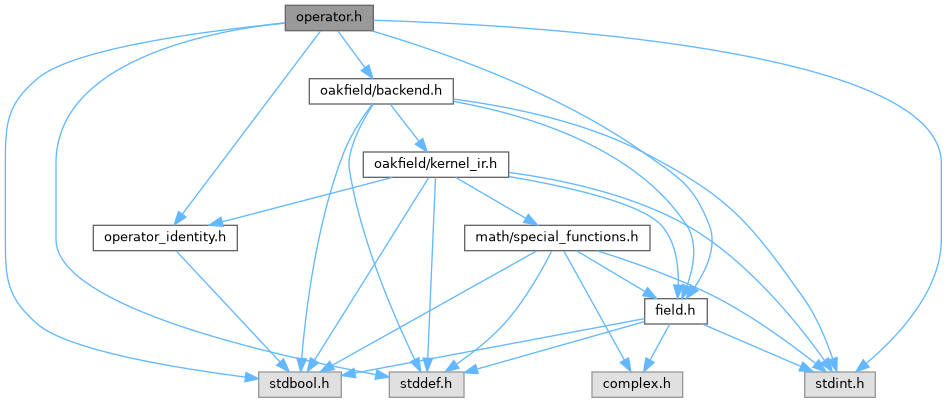

Include dependency graph for operator.h:

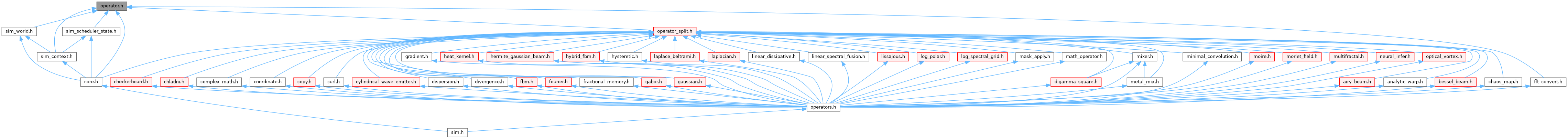

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimOperatorRepresentation
	Representation metadata attached to an operator. More...
struct	SimOperatorApproximation
	Approximation metadata describing discretization quality. More...
struct	SimNeuralShapeConstraints
	Shape and channel constraints used by neural operators. More...
struct	SimOperatorNeuralContract
	Neural operator contract metadata. More...
struct	SimOperatorInvariant
	Invariant declaration with tolerance. More...
struct	SimOperatorInfo
	Metadata describing operator characteristics. More...
struct	SimOperatorConfig
	Operator runtime configuration shared between descriptors and instances. More...
struct	SimOperator
	Operator instance stored by the registry. More...
struct	SimOperatorKernelBindingDescriptor
	Maps an IR field reference to a context field index. More...
struct	SimOperatorKernelOutputDescriptor
	Describes an output expression emitted by a kernel-backed operator. More...
struct	SimOperatorKernelDescriptor
	Descriptor for registering a kernel-backed operator. More...
struct	SimOperatorKernel
	Runtime state for a kernel-backed operator. More...
struct	SimOperatorDescriptor
	Description used when registering a new operator. More...
struct	SimOperatorRegistry
	Operator registry storing owned operator instances. More...
struct	SimOperatorPlan
	Execution plan obtained via dependency resolution. More...

Macros
#define	OAKFIELD_ENABLE_SYMBOLIC_KERNELS   1
#define	OAKFIELD_ENABLE_ZETA_CORE   1
#define	SIM_OPERATOR_NAME_MAX   63U
#define	SIM_OPERATOR_SCHEMA_KEY_MAX   127U
#define	SIM_OPERATOR_MAX_SPACING_DIMS   4U
#define	SIM_NEURAL_CHANNEL_AXIS_AUTO   255U
#define	SIM_OPERATOR_MAX_INVARIANTS   4U

Typedefs
typedef void(*	SimOperatorCycleLogFn) (const char *message, void *userdata)
	Callback used to report dependency-cycle diagnostics.
typedef enum SimOperatorCategory	SimOperatorCategory
	Operator category for grouping and scheduling hints.
typedef enum SimContinuityMode	SimContinuityMode
	Numerical continuity and stability policy.
typedef enum SimContinuityLimiterStrategy	SimContinuityLimiterStrategy
	Limiter/clipper strategies engaged by continuity guards.
typedef enum SimOperatorAlgebraicFlags	SimOperatorAlgebraicFlags
	Algebraic property bitmask for operators.
typedef struct SimOperatorRepresentation	SimOperatorRepresentation
	Representation metadata attached to an operator.
typedef struct SimOperatorApproximation	SimOperatorApproximation
	Approximation metadata describing discretization quality.
typedef enum SimRepresentationMode	SimRepresentationMode
	Representation mode governing determinism guarantees.
typedef enum SimDeterminismFlags	SimDeterminismFlags
	Determinism capability flags declared by operators.
typedef enum SimNeuralDeterminismPolicy	SimNeuralDeterminismPolicy
	Determinism policy for neural inference operators.
typedef enum SimNeuralDeviceRequirement	SimNeuralDeviceRequirement
	Device placement requirement for neural inference operators.
typedef enum SimNeuralPrecisionMode	SimNeuralPrecisionMode
	Numeric precision policy for neural inference operators.
typedef struct SimNeuralShapeConstraints	SimNeuralShapeConstraints
	Shape and channel constraints used by neural operators.
typedef struct SimOperatorNeuralContract	SimOperatorNeuralContract
	Neural operator contract metadata.
typedef enum SimClockMode	SimClockMode
	Clock selection for time-sensitive operators.
typedef enum SimOperatorInvariantKind	SimOperatorInvariantKind
	Supported invariant kinds for bookkeeping/diagnostics.
typedef struct SimOperatorInvariant	SimOperatorInvariant
	Invariant declaration with tolerance.
typedef struct SimOperatorInfo	SimOperatorInfo
	Metadata describing operator characteristics.
typedef struct SimOperatorConfig	SimOperatorConfig
	Operator runtime configuration shared between descriptors and instances.
typedef SimResult(*	SimOperatorEvalFn) (struct SimContext *context, struct SimOperator *self, void *userdata)
	Function signature for operator evaluation.
typedef void(*	SimOperatorDestroyFn) (void *userdata)
	Function signature for operator teardown callbacks.
typedef const struct SimGraphIR *(*	SimOperatorGraphIRViewFn) (const struct SimOperator *self, void *userdata)
	Optional hook exposing a read-only GraphIR lowering view.
typedef struct SimOperator	SimOperator
	Operator instance stored by the registry.
typedef struct SimOperatorKernelBindingDescriptor	SimOperatorKernelBindingDescriptor
	Maps an IR field reference to a context field index.
typedef struct SimOperatorKernelOutputDescriptor	SimOperatorKernelOutputDescriptor
	Describes an output expression emitted by a kernel-backed operator.
typedef struct SimOperatorKernelDescriptor	SimOperatorKernelDescriptor
	Descriptor for registering a kernel-backed operator.
typedef struct SimOperatorKernel	SimOperatorKernel
	Runtime state for a kernel-backed operator.
typedef struct SimOperatorDescriptor	SimOperatorDescriptor
	Description used when registering a new operator.
typedef struct SimOperatorRegistry	SimOperatorRegistry
	Operator registry storing owned operator instances.
typedef struct SimOperatorPlan	SimOperatorPlan
	Execution plan obtained via dependency resolution.

Enumerations
enum	SimOperatorCategory {   SIM_OPERATOR_CATEGORY_UNKNOWN = 0 , SIM_OPERATOR_CATEGORY_DIFFUSION , SIM_OPERATOR_CATEGORY_ADVECTION , SIM_OPERATOR_CATEGORY_REACTION ,   SIM_OPERATOR_CATEGORY_POTENTIAL , SIM_OPERATOR_CATEGORY_MEASUREMENT , SIM_OPERATOR_CATEGORY_COUPLING , SIM_OPERATOR_CATEGORY_NOISE ,   SIM_OPERATOR_CATEGORY_BOUNDARY , SIM_OPERATOR_CATEGORY_THERMOSTAT , SIM_OPERATOR_CATEGORY_UTILITY , SIM_OPERATOR_CATEGORY_NONLINEAR }
	Operator category for grouping and scheduling hints. More...
enum	SimContinuityMode { SIM_CONTINUITY_NONE = 0 , SIM_CONTINUITY_STRICT = 1 , SIM_CONTINUITY_CLAMPED = 2 , SIM_CONTINUITY_LIMITED = 3 }
	Numerical continuity and stability policy. More...
enum	SimContinuityLimiterStrategy {   SIM_LIMITER_STRATEGY_HARD_CLIP = 1u << 0 , SIM_LIMITER_STRATEGY_SOFT_CLIP = 1u << 1 , SIM_LIMITER_STRATEGY_SIGMOID_COMPRESSION , SIM_LIMITER_STRATEGY_ADAPTIVE_BIAS ,   SIM_LIMITER_STRATEGY_STAT_AWARE , SIM_LIMITER_STRATEGY_PER_FIELD_OVERRIDE = 1u << 5 }
	Limiter/clipper strategies engaged by continuity guards. More...
enum	SimOperatorAlgebraicFlags {   SIM_OPERATOR_ALG_NONE = 0u , SIM_OPERATOR_ALG_LINEAR = 1u << 0 , SIM_OPERATOR_ALG_AFFINE = 1u << 1 , SIM_OPERATOR_ALG_SELF_ADJOINT = 1u << 2 ,   SIM_OPERATOR_ALG_PROJECTION = 1u << 3 , SIM_OPERATOR_ALG_COMMUTES_WITH_NOISE , SIM_OPERATOR_ALG_COMMUTES_WITH_BOUNDARY = 1u << 5 }
	Algebraic property bitmask for operators. More...
enum	SimRepresentationMode { SIM_REPRESENTATION_MODE_STRICT = 0 , SIM_REPRESENTATION_MODE_RELAXED , SIM_REPRESENTATION_MODE_EXPLORATION }
	Representation mode governing determinism guarantees. More...
enum	SimDeterminismFlags {   SIM_DET_NONE = 0U , SIM_DET_PURE_TIME = 1U << 0 , SIM_DET_REWIND_SAFE = 1U << 1 , SIM_DET_NO_STATEFUL_NODES = 1U << 2 ,   SIM_DET_DETERMINISTIC_RNG_ONLY = 1U << 3 }
	Determinism capability flags declared by operators. More...
enum	SimNeuralDeterminismPolicy { SIM_NEURAL_DETERMINISM_INHERIT = 0 , SIM_NEURAL_DETERMINISM_STRICT , SIM_NEURAL_DETERMINISM_BEST_EFFORT , SIM_NEURAL_DETERMINISM_OFF }
	Determinism policy for neural inference operators. More...
enum	SimNeuralDeviceRequirement { SIM_NEURAL_DEVICE_ANY = 0 , SIM_NEURAL_DEVICE_CPU_ONLY , SIM_NEURAL_DEVICE_ACCELERATOR_PREFERRED , SIM_NEURAL_DEVICE_ACCELERATOR_REQUIRED }
	Device placement requirement for neural inference operators. More...
enum	SimNeuralPrecisionMode {   SIM_NEURAL_PRECISION_DEFAULT = 0 , SIM_NEURAL_PRECISION_FP32 , SIM_NEURAL_PRECISION_FP64 , SIM_NEURAL_PRECISION_MIXED ,   SIM_NEURAL_PRECISION_FP16 , SIM_NEURAL_PRECISION_BF16 }
	Numeric precision policy for neural inference operators. More...
enum	SimClockMode { SIM_CLOCK_FROM_TIME_PARAM = 0 , SIM_CLOCK_FROM_STEP_PURE , SIM_CLOCK_ACCUMULATED_STATEFUL }
	Clock selection for time-sensitive operators. More...
enum	SimOperatorInvariantKind {   SIM_OPERATOR_INVARIANT_NONE = 0 , SIM_OPERATOR_INVARIANT_L2_NORM , SIM_OPERATOR_INVARIANT_L1_NORM , SIM_OPERATOR_INVARIANT_ENERGY ,   SIM_OPERATOR_INVARIANT_MASS , SIM_OPERATOR_INVARIANT_MEAN , SIM_OPERATOR_INVARIANT_VARIANCE }
	Supported invariant kinds for bookkeeping/diagnostics. More...

Functions
const char *	sim_continuity_mode_name (SimContinuityMode mode)
bool	sim_continuity_mode_from_string (const char *text, SimContinuityMode *out_mode)
const char *	sim_continuity_limiter_name (SimContinuityLimiterStrategy strategy)
const char *	sim_boundary_policy_name (SimIRBoundaryPolicy policy)
bool	sim_boundary_policy_from_string (const char *text, SimIRBoundaryPolicy *out_policy)
void	sim_operator_config_set_spacing (struct SimOperatorConfig *config, const double *spacing, size_t rank)
SimResult	sim_operator_registry_init (SimOperatorRegistry *registry)
	Initialize an empty registry.
void	sim_operator_registry_destroy (SimOperatorRegistry *registry)
	Release all operators contained in a registry.
SimResult	sim_operator_registry_register (SimOperatorRegistry *registry, const SimOperatorDescriptor *descriptor, size_t *out_index)
	Register a new operator.
SimOperator *	sim_operator_registry_get (SimOperatorRegistry *registry, size_t index)
	Lookup an operator by index.
void	sim_operator_dependencies (const SimOperator *op, const size_t **out_deps, size_t *out_count)
	Access operator dependency list.
SimResult	sim_operator_resolve_plan_with_logger (const SimOperatorRegistry *registry, SimOperatorPlan *plan, SimOperatorCycleLogFn logger, void *logger_userdata)
	Resolve an execution plan for the registry.
SimResult	sim_operator_resolve_plan (const SimOperatorRegistry *registry, SimOperatorPlan *plan)
void	sim_operator_plan_destroy (SimOperatorPlan *plan)
	Release resources owned by a plan.
void *	sim_operator_payload (SimOperator *op)
	Retrieve the internal user payload.
const char *	sim_operator_name (const SimOperator *op)
	Retrieve the operator name.
SimOperatorInfo	sim_operator_info (const SimOperator *op)
	Retrieve operator metadata.
void	sim_operator_config_normalize (SimOperatorConfig *config)
	Convenience helpers for working with operator configuration payloads.
SimOperatorConfig	sim_operator_config_defaults (void)
SimOperatorInfo	sim_operator_info_defaults (void)
void	sim_operator_info_normalize (SimOperatorInfo *info)
void	sim_operator_info_set_identity (SimOperatorInfo *info, const char *schema_key, SimIROpcode ir_opcode)
void	sim_operator_info_set_schema_identity (SimOperatorInfo *info, const char *schema_key)
const char *	sim_operator_abstract_id (const struct SimOperator *op)
void	sim_operator_set_schema_key (struct SimOperator *op, const char *schema_key)
void	sim_operator_set_catalog_metadata (struct SimOperator *op, const void *metadata)
const void *	sim_operator_catalog_metadata (const struct SimOperator *op)
const char *	sim_operator_schema_key (const struct SimOperator *op)
const char *	sim_operator_schema_key_or (const struct SimOperator *op, const char *fallback)
SimIROpcode	sim_operator_ir_opcode (const struct SimOperator *op)
const SimOperatorRepresentation *	sim_operator_representation (const struct SimOperator *op)
const char *	sim_operator_representation_domain_name (const struct SimOperator *op)
const char *	sim_operator_representation_value_kind_name (const struct SimOperator *op)
const struct SimGraphIR *	sim_operator_graph_ir (const struct SimOperator *op)
bool	sim_operator_config_get (const SimOperator *op, SimOperatorConfig *out_config)
void	sim_operator_config_set (struct SimOperator *op, const SimOperatorConfig *config)

Detailed Description

Operator abstraction, registry, and dependency resolution for libsimcore.

Operators are registered into a SimContext with explicit read/write field access, optional dependencies, metadata, and configuration. The scheduler uses those declarations to build deterministic execution order, while operator descriptors keep ownership boundaries clear: descriptors and arrays are copied as needed, but user payload lifetime remains the caller's responsibility unless a concrete operator documents otherwise.

Macro Definition Documentation

SIM_NEURAL_CHANNEL_AXIS_AUTO

#define SIM_NEURAL_CHANNEL_AXIS_AUTO   255U

Automatic channel-axis selection for neural shape constraints.

SIM_OPERATOR_MAX_INVARIANTS

#define SIM_OPERATOR_MAX_INVARIANTS   4U

Maximum invariants tracked inline per operator.

SIM_OPERATOR_MAX_SPACING_DIMS

#define SIM_OPERATOR_MAX_SPACING_DIMS   4U

Maximum dimensions tracked for spacing metadata.

SIM_OPERATOR_NAME_MAX

#define SIM_OPERATOR_NAME_MAX   63U

Maximum length for operator identifiers (excluding null terminator).

SIM_OPERATOR_SCHEMA_KEY_MAX

#define SIM_OPERATOR_SCHEMA_KEY_MAX   127U

Maximum length for stable operator schema keys (excluding null terminator).

Typedef Documentation

SimClockMode

typedef enum SimClockMode SimClockMode

Clock selection for time-sensitive operators.

Pure deterministic time: t = f(params) (rewind-safe, replayable, KernelIR-friendly). True accumulated time: t_{n+1} = t_n + dt_n (requires state, rewind policy-dependent).

CLOCK_FROM_TIME_PARAM: t = time param + offset (pure). CLOCK_FROM_STEP_PURE: t = step_index * nominal_dt + offset (pure). CLOCK_ACCUMULATED_STATEFUL: t accumulates with state (non-replayable).

SimRepresentationMode

typedef enum SimRepresentationMode SimRepresentationMode

Representation mode governing determinism guarantees.

STRICT: deterministic, snapshot-friendly, IR/CPU parity, rewind-safe. RELAXED: mostly deterministic; permits limited conveniences. EXPLORATION: best-effort; stateful or non-replayable behavior permitted.

Enumeration Type Documentation

SimClockMode

enum SimClockMode

Clock selection for time-sensitive operators.

Pure deterministic time: t = f(params) (rewind-safe, replayable, KernelIR-friendly). True accumulated time: t_{n+1} = t_n + dt_n (requires state, rewind policy-dependent).

CLOCK_FROM_TIME_PARAM: t = time param + offset (pure). CLOCK_FROM_STEP_PURE: t = step_index * nominal_dt + offset (pure). CLOCK_ACCUMULATED_STATEFUL: t accumulates with state (non-replayable).

Enumerator
SIM_CLOCK_FROM_TIME_PARAM	Derive time from runtime time parameter.
SIM_CLOCK_FROM_STEP_PURE	Derive time from step index and nominal dt.
SIM_CLOCK_ACCUMULATED_STATEFUL	Accumulate time inside operator state.

SimContinuityLimiterStrategy

enum SimContinuityLimiterStrategy

Limiter/clipper strategies engaged by continuity guards.

Enumerator
SIM_LIMITER_STRATEGY_HARD_CLIP	Clamp values to configured hard bounds.
SIM_LIMITER_STRATEGY_SOFT_CLIP	Smoothly compress values near bounds.
SIM_LIMITER_STRATEGY_SIGMOID_COMPRESSION	Use sigmoid compression for singular neighborhoods.
SIM_LIMITER_STRATEGY_ADAPTIVE_BIAS	Shift probe bias adaptively near singularities.
SIM_LIMITER_STRATEGY_STAT_AWARE	Incorporate field statistics into limiter decisions.
SIM_LIMITER_STRATEGY_PER_FIELD_OVERRIDE	Permit per-field limiter overrides.

SimContinuityMode

enum SimContinuityMode

Numerical continuity and stability policy.

Enumerator
SIM_CONTINUITY_NONE	Disable all guards; raw kernel output.
SIM_CONTINUITY_STRICT	Preserve analytic continuity; may emit NaN/Inf.
SIM_CONTINUITY_CLAMPED	Clip to finite range near singularities.
SIM_CONTINUITY_LIMITED	Blend asymptotic/analytic forms near threshold.

SimDeterminismFlags

enum SimDeterminismFlags

Determinism capability flags declared by operators.

Enumerator
SIM_DET_NONE	No determinism guarantees declared.
SIM_DET_PURE_TIME	Time is derived purely from runtime params.
SIM_DET_REWIND_SAFE	Operator behavior is rewind-safe.
SIM_DET_NO_STATEFUL_NODES	Operator does not rely on stateful nodes.
SIM_DET_DETERMINISTIC_RNG_ONLY	RNG usage is deterministic and seed-driven.

SimNeuralDeterminismPolicy

enum SimNeuralDeterminismPolicy

Determinism policy for neural inference operators.

Enumerator
SIM_NEURAL_DETERMINISM_INHERIT	Defer to context/operator determinism mode.
SIM_NEURAL_DETERMINISM_STRICT	Require strict deterministic inference path.
SIM_NEURAL_DETERMINISM_BEST_EFFORT	Prefer deterministic path but allow fallback.
SIM_NEURAL_DETERMINISM_OFF	Determinism not required for inference.

SimNeuralDeviceRequirement

enum SimNeuralDeviceRequirement

Device placement requirement for neural inference operators.

Enumerator
SIM_NEURAL_DEVICE_ANY	Any available device is acceptable.
SIM_NEURAL_DEVICE_CPU_ONLY	Must run on CPU.
SIM_NEURAL_DEVICE_ACCELERATOR_PREFERRED	Prefer accelerator, fallback to CPU.
SIM_NEURAL_DEVICE_ACCELERATOR_REQUIRED	Require accelerator device.

SimNeuralPrecisionMode

enum SimNeuralPrecisionMode

Numeric precision policy for neural inference operators.

Enumerator
SIM_NEURAL_PRECISION_DEFAULT	Runtime/provider default precision.
SIM_NEURAL_PRECISION_FP32	32-bit floating-point inference.
SIM_NEURAL_PRECISION_FP64	64-bit floating-point inference.
SIM_NEURAL_PRECISION_MIXED	Backend-selected mixed precision.
SIM_NEURAL_PRECISION_FP16	16-bit floating-point inference.
SIM_NEURAL_PRECISION_BF16	bfloat16 inference.

SimOperatorAlgebraicFlags

enum SimOperatorAlgebraicFlags

Algebraic property bitmask for operators.

Enumerator
SIM_OPERATOR_ALG_NONE	No algebraic properties declared.
SIM_OPERATOR_ALG_LINEAR	Purely linear mapping.
SIM_OPERATOR_ALG_AFFINE	Affine (linear + bias).
SIM_OPERATOR_ALG_SELF_ADJOINT	Self-adjoint / symmetric.
SIM_OPERATOR_ALG_PROJECTION	Idempotent projection.
SIM_OPERATOR_ALG_COMMUTES_WITH_NOISE	Commutes with stochastic noise injection.
SIM_OPERATOR_ALG_COMMUTES_WITH_BOUNDARY	Commutes with boundary enforcement.

SimOperatorCategory

enum SimOperatorCategory

Operator category for grouping and scheduling hints.

Enumerator
SIM_OPERATOR_CATEGORY_UNKNOWN	Uncategorized operator.
SIM_OPERATOR_CATEGORY_DIFFUSION	Diffusion, dissipation, linear damping.
SIM_OPERATOR_CATEGORY_ADVECTION	Transport, advection, warp.
SIM_OPERATOR_CATEGORY_REACTION	Nonlinear reaction terms (e.g., cubic).
SIM_OPERATOR_CATEGORY_POTENTIAL	External potential application.
SIM_OPERATOR_CATEGORY_MEASUREMENT	Measurement, projection, collapse.
SIM_OPERATOR_CATEGORY_COUPLING	Field coupling, sieve operators.
SIM_OPERATOR_CATEGORY_NOISE	Stochastic noise injection.
SIM_OPERATOR_CATEGORY_BOUNDARY	Boundary condition enforcement.
SIM_OPERATOR_CATEGORY_THERMOSTAT	Thermostat regulation operators.
SIM_OPERATOR_CATEGORY_UTILITY	Utility operators (copy, scale, etc.).
SIM_OPERATOR_CATEGORY_NONLINEAR	General nonlinear operators.

SimOperatorInvariantKind

enum SimOperatorInvariantKind

Supported invariant kinds for bookkeeping/diagnostics.

Enumerator
SIM_OPERATOR_INVARIANT_NONE	No invariant declared.
SIM_OPERATOR_INVARIANT_L2_NORM	L2 norm should remain within tolerance.
SIM_OPERATOR_INVARIANT_L1_NORM	L1 norm should remain within tolerance.
SIM_OPERATOR_INVARIANT_ENERGY	Energy should remain within tolerance.
SIM_OPERATOR_INVARIANT_MASS	Mass/sum should remain within tolerance.
SIM_OPERATOR_INVARIANT_MEAN	Mean value should remain within tolerance.
SIM_OPERATOR_INVARIANT_VARIANCE	Variance should remain within tolerance.

SimRepresentationMode

enum SimRepresentationMode

Representation mode governing determinism guarantees.

STRICT: deterministic, snapshot-friendly, IR/CPU parity, rewind-safe. RELAXED: mostly deterministic; permits limited conveniences. EXPLORATION: best-effort; stateful or non-replayable behavior permitted.

Enumerator
SIM_REPRESENTATION_MODE_STRICT	Deterministic, replayable representation mode.
SIM_REPRESENTATION_MODE_RELAXED	Mostly deterministic representation mode.
SIM_REPRESENTATION_MODE_EXPLORATION	Best-effort exploratory representation mode.

Function Documentation

sim_operator_dependencies()

void sim_operator_dependencies	(	const SimOperator *	op,
		const size_t **	out_deps,
		size_t *	out_count
	)

Access operator dependency list.

Parameters

	op	Operator instance.
[out]	out_deps	Pointer receiving dependency array (owned by op).
[out]	out_count	Pointer receiving dependency count.

sim_operator_info()

SimOperatorInfo sim_operator_info

(

const SimOperator *

op

)

Retrieve operator metadata.

Parameters

op	Operator instance.

Returns

Operator metadata structure.

sim_operator_name()

const char * sim_operator_name

(

const SimOperator *

op

)

Retrieve the operator name.

Parameters

op	Operator instance.

Returns

Null-terminated operator name.

sim_operator_payload()

void * sim_operator_payload

(

SimOperator *

op

)

Retrieve the internal user payload.

Parameters

op	Operator instance.

Returns

User-provided pointer.

sim_operator_plan_destroy()

void sim_operator_plan_destroy

(

SimOperatorPlan *

plan

)

Release resources owned by a plan.

Parameters

plan	Plan to destroy; may be NULL.

sim_operator_registry_destroy()

void sim_operator_registry_destroy

(

SimOperatorRegistry *

registry

)

Release all operators contained in a registry.

Parameters

registry

Registry to tear down.

sim_operator_registry_get()

SimOperator * sim_operator_registry_get	(	SimOperatorRegistry *	registry,
		size_t	index
	)

Lookup an operator by index.

Parameters

registry	Registry instance.
index	Operator index.

Returns

Pointer to the operator, or NULL if not found.

sim_operator_registry_init()

SimResult sim_operator_registry_init

(

SimOperatorRegistry *

registry

)

Initialize an empty registry.

Parameters

[out]

registry

Target registry.

Returns

SIM_RESULT_OK on success.

sim_operator_registry_register()

SimResult sim_operator_registry_register	(	SimOperatorRegistry *	registry,
		const SimOperatorDescriptor *	descriptor,
		size_t *	out_index
	)

Register a new operator.

Parameters

	registry	Target registry.
	descriptor	Operator descriptor; all strings are copied.
[out]	out_index	Optional pointer receiving the assigned index.

Returns

SIM_RESULT_OK on success or an error code.

sim_operator_resolve_plan_with_logger()

SimResult sim_operator_resolve_plan_with_logger	(	const SimOperatorRegistry *	registry,
		SimOperatorPlan *	plan,
		SimOperatorCycleLogFn	logger,
		void *	logger_userdata
	)

Resolve an execution plan for the registry.

Parameters

	registry	Registry instance.
[out]	plan	Execution plan to populate.
	logger	Optional callback for dependency-cycle diagnostics.
	logger_userdata	Opaque pointer forwarded to logger.

Returns

SIM_RESULT_OK on success or SIM_RESULT_DEPENDENCY_ERROR when cycles exist.
