stimulus.h File Reference

Legacy simple sinusoidal forcing operator (single-mode driver). More...

#include "coords.h"
#include "oakfield/operator_split.h"
#include <stdbool.h>

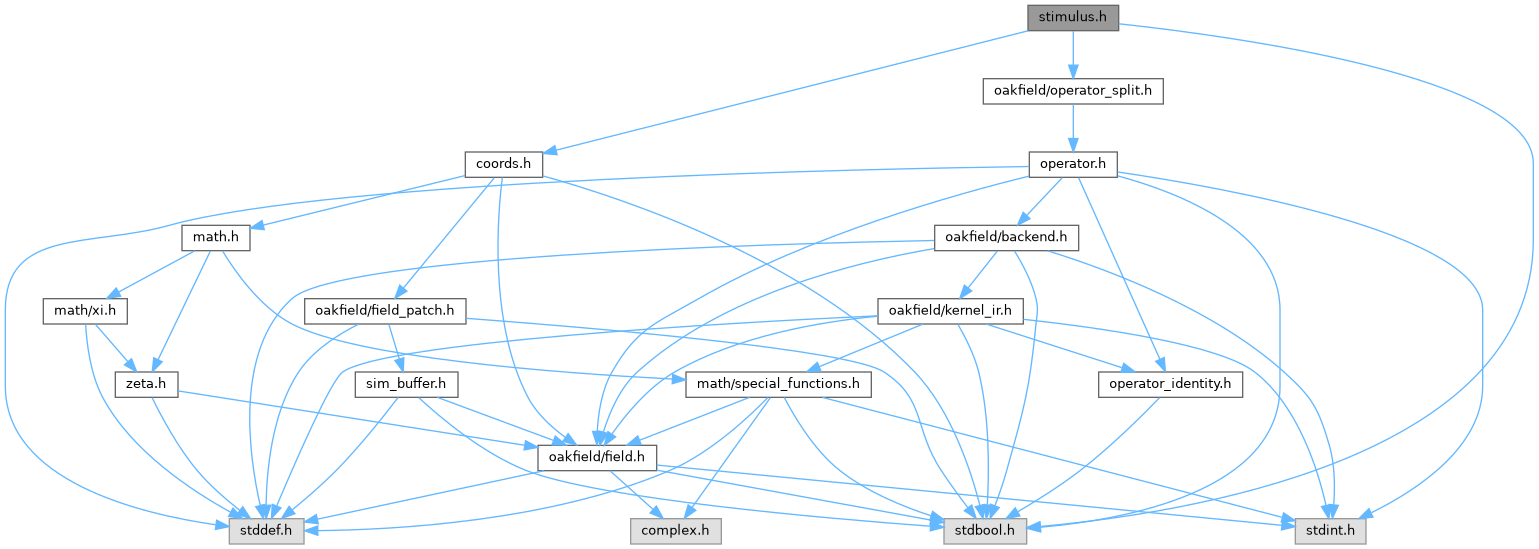

Include dependency graph for stimulus/stimulus.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	StimulusOperatorConfig
	Configuration parameters for the legacy sinusoidal stimulus operator. More...

Typedefs
typedef struct StimulusOperatorConfig	StimulusOperatorConfig
	Configuration parameters for the legacy sinusoidal stimulus operator.

Functions
SimResult	sim_add_stimulus_operator (struct SimContext *context, const StimulusOperatorConfig *config, size_t *out_index)
	Register the legacy single-mode sinusoidal stimulus operator.
SimResult	sim_stimulus_config (struct SimContext *context, size_t operator_index, StimulusOperatorConfig *out_config)
	Copy the current legacy stimulus configuration from a registered operator.
SimResult	sim_stimulus_update (struct SimContext *context, size_t operator_index, const StimulusOperatorConfig *config)
	Replace or renormalize a registered legacy stimulus configuration.

Detailed Description

Legacy simple sinusoidal forcing operator (single-mode driver).

For richer stimuli (chirp, traveling Gaussian), prefer the operators in sinusoidal.h and gaussian.h. Supports real and complex fields; complex writes can include a phase rotation.

Function Documentation

sim_add_stimulus_operator()

SimResult sim_add_stimulus_operator	(	struct SimContext *	context,
		const StimulusOperatorConfig *	config,
		size_t *	out_index
	)

Register the legacy single-mode sinusoidal stimulus operator.

The implementation copies and normalizes config, then registers a split operator that adds a real sinusoidal forcing term to the target field. Complex targets receive the forcing in the real component.

Parameters

	context	Simulation context that will own the operator.
	config	Optional stimulus configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from validation, allocation, or split-operator registration.

sim_stimulus_config()

SimResult sim_stimulus_config	(	struct SimContext *	context,
		size_t	operator_index,
		StimulusOperatorConfig *	out_config
	)

Copy the current legacy stimulus configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_stimulus_operator().
[out]	out_config	Receives the operator's normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no stimulus state.

sim_stimulus_update()

SimResult sim_stimulus_update	(	struct SimContext *	context,
		size_t	operator_index,
		const StimulusOperatorConfig *	config
	)

Replace or renormalize a registered legacy stimulus configuration.

Passing NULL for config keeps the existing configuration and reapplies normalization. A successful update refreshes symbolic state and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the legacy stimulus operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code if lookup or state validation fails.
